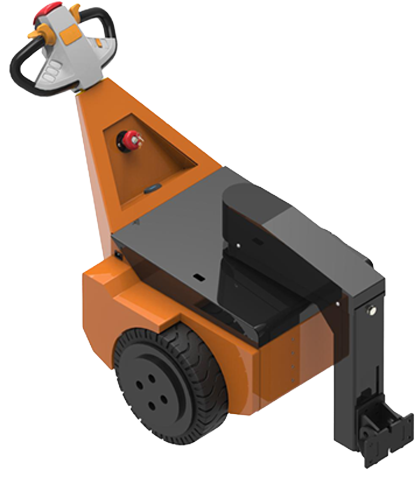

HEAVY-DUTY TRACTIVE PUSHER

TP500
Tractive Pusher

Move 10 tonnes on castors. 40 on rails.

The workhorse of the heavy range. Engineered for the specific load it’ll move – chosen by Arla Foods, Jeld-Wen, and manufacturers across dairy, aerospace, joinery and automotive.

HEAVY-DUTY TRACTIVE PUSHER

TP500
Tractive Pusher

Move 10 tonnes on castors. 40 on rails.

The workhorse of the heavy range. Engineered for the specific load it’ll move – chosen by Arla Foods, Jeld-Wen, and manufacturers across dairy, aerospace, joinery and automotive.

Made in UK

  • 2-Year Warranty
  • Global Distributors
  • Operator Training
  • UK Service Team
TP500 TRACTIVE PUSHER

Up to 10,000 kg

Aircraft engines, coating trolleys, roll cages, kiln carts – heavy wheeled loads on standard floors.

Up to 10,000 kg

Aircraft engines, coating trolleys, roll cages, kiln carts – heavy wheeled loads on standard floors.

Up to 40,000 kg

Railed bogies, kiln trolleys, indexed production lines, heavy assembly tooling.

The unit our customers buy most.

Moving heavy wheeled or railed loads by hand is one of the leading causes of musculoskeletal injury in UK industry – over a third of work-related illness, according to the HSE Labour Force Survey. It’s also one of the slowest, most variable parts of most production operations.

The TP500 replaces that with one operator and one machine. Battery-powered, pedestrian-operated, designed and built in the UK – it moves wheeled loads up to 10 tonnes on castors, or railed loads up to 40 tonnes. The drive system is the same one used in our heavier TP500HD and lighter TP250 units, so spare parts and service know-how carry across the whole heavy range.

What makes the TP500 the unit our customers come back for isn’t the headline capacity, competitors match that on paper. It’s that every unit is engineered around the specific load it’ll move. The coupling, the ballast, the gearing, the control characteristics, all specified before the machine ships.

TP500 APPLICATIONS ACROSS INDUSTRY

Where the TP500 works.

Aerospace

Aircraft engines, landing gear, tooling and machinery.

Dairy & food

Nested roll cages, stainless silos

Ceramics

Kiln trolleys and high temp carts.

Joinery

Door and window line indexing.

CASE STUDY

Arla Foods

250 nested roll cages, in one go

Tractive Power supplied a TP500 paired with the roll cage coupling – replacing a multi-operator manual process with a single pedestrian operator. Backed by a full maintenance agreement to keep uptime at maximum.

CASE STUDY

Arla Foods

TP500 specification

Full technical specification.

View capacity for:

Your Content Goes Here
Your Content Goes Here
TP500 CONFIGURATIONS — STANDARD & COMPACT

Two configurations, one drive system.

STANDARD

TP500

Open workshop floors, dairy distribution centres, aerospace assembly halls.

Turning circle: 1.65 m

TIGHT SPACES

TP500 Compact

Same drive, same towing capacity, smaller footprint.For restricted access bays and confined workshop cells.

Turning circle: 0.9 m

TP500 COUPLINGS AND BESPOKE OPTIONS

Every TP500 is engineered
for the specific load it’ll move.

Five standard couplings cover most applications. Where a load doesn’t fit one of them, our in-house design team builds the interface to suit. No extra unit. Just the right connection.

Adjustable pushpad

Train bogies, railed trolleys

Roll cage coupling

Nested cages, up to 250 in one go

5th wheel channel

A-frames, stillages, machinery

Quick latch

Standardised across your trolleys

Paper roll

Drums, reels, cable spools

None of these fit? We design the coupling around your load. In-house, no third parties, no waiting on suppliers.

FREQUENTLY ASKED

Frequently asked questions for
the TP500 Tractive Pusher

What's the difference between the TP500 and TP500 Compact?

Both have the same towing capacity (10,000 kg on castors, 40,000 kg on rails), motor and battery. The difference is the turning circle: 1.65 m
on the standard TP500 and 0.9 m on the Compact. Choose Compact for restricted access bays and confined production cells; choose standard for open workshop floors and distribution centres.

Both have the same towing capacity (10,000 kg on castors, 40,000 kg on rails), motor and battery. The difference is the turning circle: 1.65 m
on the standard TP500 and 0.9 m on the Compact. Choose Compact for restricted access bays and confined production cells; choose standard for open workshop floors and distribution centres.

Both have the same towing capacity (10,000 kg on castors, 40,000 kg on rails), motor and battery. The difference is the turning circle: 1.65 m
on the standard TP500 and 0.9 m on the Compact. Choose Compact for restricted access bays and confined production cells; choose standard for open workshop floors and distribution centres.

Both have the same towing capacity (10,000 kg on castors, 40,000 kg on rails), motor and battery. The difference is the turning circle: 1.65 m
on the standard TP500 and 0.9 m on the Compact. Choose Compact for restricted access bays and confined production cells; choose standard for open workshop floors and distribution centres.

Both have the same towing capacity (10,000 kg on castors, 40,000 kg on rails), motor and battery. The difference is the turning circle: 1.65 m
on the standard TP500 and 0.9 m on the Compact. Choose Compact for restricted access bays and confined production cells; choose standard for open workshop floors and distribution centres.
LIGHTER-DUTY ALTERNATIVES

TP250

5,000 kg castors
20,000 kg rails

TT100

2,000 kg castors
10,000 kg rails

TT50

1,000 kg castors
5,000 kg rails
